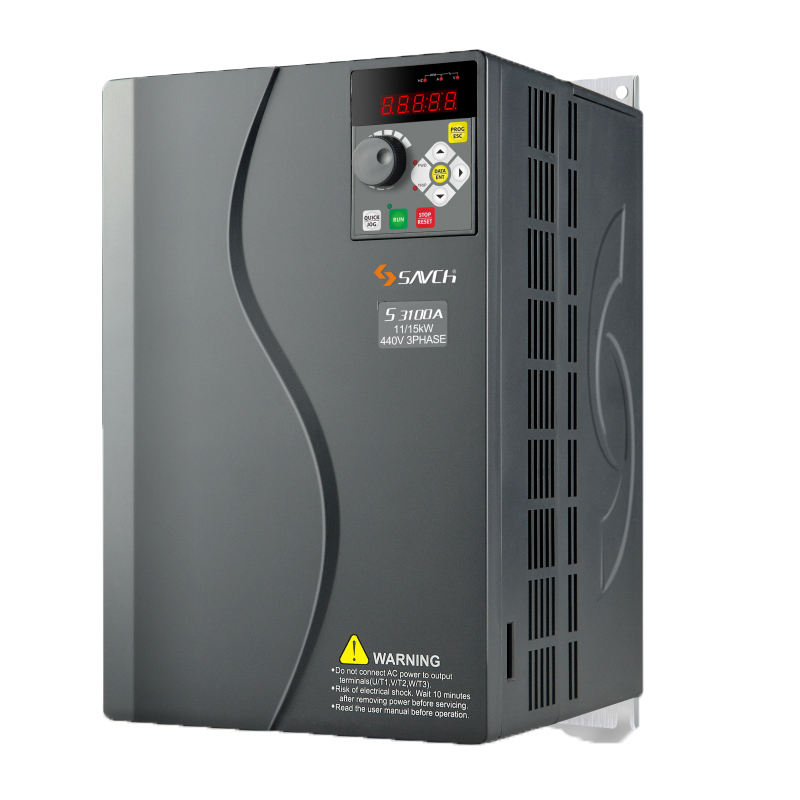

Multi Function Open-Loop Vector Control(Asynchronous)

S3100 Multi  Function  Open-Loop  Vector  Control inverter utilizs Japanese technology and international brand chipswith and has very good performance and quality, which is widely used in solar pump, plastics machine and elevator etc.

Rated  Voltage:Single/three-phase  220V,three-phase  440V Frequency   range:0.1~500Hz

Power   range:0.4~500kW

Control  Modes:V/f,Dynamic  torque,Current  vector(without  speed  sensor)

【Characteristics】

▶Overload    capacity:150%-60s.

▶Starting  torque:150%-1.0Hz.

▶Compact size is flexible to install.

▶ The cabinet  is easy to  maintain.The top cover,keypad,fan,baseboard and capacitance damper are assemble.

▶ It is optional of NPN and PNP for external terminals.The connection of PLC or HMI with AC inverter is more flexible.

▶Support common DC bus application to achieve energy sharing.

▶ With built-in brake unit under &include 37kW.

▶Support many load operation modes,such as quadratic fluid load (fans,pumps),constant  torque  load,to  save  energy.

▶Support common procedure PID control and PID tension roller.
